Universal Pressure Testing Machine Honeycomb Equipment
1. Descriptions:
1. The mechanical property measurement and test equipment of computer servo tensile and pressuretesting machine can detect the tensile, stripping, compression, shearing, puncture and other items of metal and non-metal, polymer materials, rubber and plastic, 3M tape, label,
protective film and environmental protection bag.
2. The tension pressure testing machine uses the latest control technology, controls the servo motor through the servo AC pulse controller, and
cooperates with the high-precision reducer to drive a pair of high- precision ball screw moving test bench, which can run at the speed of
0.1mm/min-500mm/min. The high- precision tension and pressure sensor imported from the United States is used on the force measuring source. Its accuracy reaches 0.01%, high sensitivity, and the whole system can reach 0.5 grade accuracy.Fully refer to national standards:
(GJB130.4-86),
(GJB130.5-86),
(GJB130.9-86),
(gjb130.7-86),
to design fixture and organize test.
2. Specifications:
| Maximum range | 50kN |
| Accuracy grade | 0.5 |
| Computer (including) | ± 0.2% |
| Effective stroke | 1300mm |
| Speed range | 0.01-500mm/min (adjustable) |
| Tensile accuracy | 0.001mm |
| Power supply | AC220 ~ 230V, 50 / 60Hz |
3. Supporting instruments
| NO. | NAME | UNIT | QTY |
| 1 | Testing machine(5T) | Set | 1 (Standard configuration) |
| 2 | Industrial coumpter | Set | 1 (Standard configuration) |
| 3 | Tensile shear clamp | Set | 1 |
| 4 | Drum stripping fixture | Set | 1 |
| 5 | Flat drawing fixture | Set | 1 |
| 6 | Flat compression strength fixture | Set | 1 |
| 7 | Bending strength fixture | Set | 1 |
| 8 | Node strength fixture | Set | 1 |
| 9 | 90 degree striping fixture | Set | 1 |
3. Honeycomb equipment has several advantages:
• High efficiency
• Increase production efficiency
• Decrease employee costs
4. Applications:

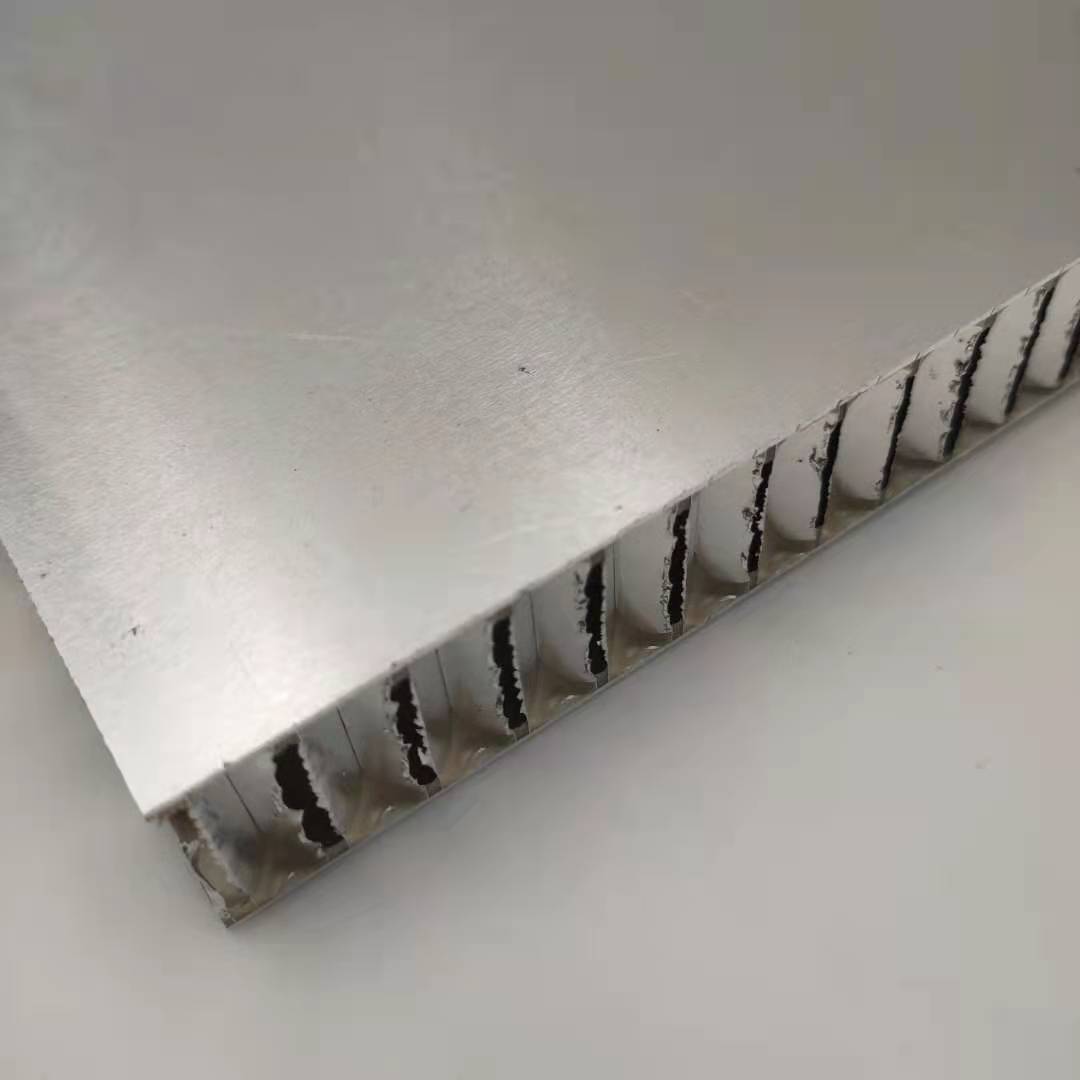

• Testing aluminum honeycomb core, honeycomb panel
5. Quality control:
A very technical engineering team. The general manager has worked in the Netherlands. The core technologies are introduced from the Netherlands. Others are very young and have more than 5 years of practical experience.
Strict QC team: 8 people are responsible for gluing machine honeycomb equipment of quality control of parts, processing, testing, packaging, etc.
6. Honeycomb equipment gluing machine of more pictures:
7. Company profile
Suzhou Beecore Honeycomb Materials Co.Ltd, originated from Besin (Dutch) International Group which was founded in 1957. It is the world's leading professional manufacturer of honeycomb materials. Since it' s established, the company has been committed to the research and development of honeycomb technology, from slant-porous aluminum honeycomb core, honeycomb core, honeycomb panel, to the finished product which was using honeycomb panel as the solution, such as truck body, laser TV / projection screen etc.
8. History
1957 Besin (Dutch) International Group was established and dedicated to research and development of BEECORE and BEEBOARD.
1958 Besin brought honeycomb technology into China, and Besin (Suzhou) company was established.
2002 Beecore (Guangdong) factory was established and have 10 aluminum honeycomb production lines.
2009 Suzhou Beecore Honeycomb Materials Co., Ltd was established and mainly produce aluminum honeycomb core and paper honeycomb core and other products.
2010 Beecore products are widely used for railway industry, Shanghai Expo, marine furniture etc.
2014 Beecore developed micro-porous aluminum honeycomb core and slant-porous aluminum honeycomb core, as well as honeycomb filters.
2015 Beecore added honeycomb panels production lines, specialized in super length, width, curved, and special honeycomb panels of industry field.
2016 The self-developed aluminum honeycomb equipment has been exported to Europe, America, Asia and already obtained the technology patent in China.
2017- so far Suzhou Beecore Honeycomb Materials Co., Ltd is honored as the high-technology innovation enterprise.
9. Production picture
10. FAQ
Q1. What is test machine honeycomb equipment usd for?
A: It can be used to test the flat compression strength, flat tensile strength, shear strength and drum peel strength of aluminum honeycomb core and aluminum honeycomb plate and so on.
Q2. What are the advantages of honeycomb equipment?
The output results of test results can be set arbitrarily: maximum force value, elongation, tensile strength, constant force elongation, constant elongation force value, yield strength, elastic modulus, maximum test force, etc. the test report can be directly stored in PDF format or can be customized.
Q3. What is the packaging method of honeycomb equipment?
A: Packed in plywood cases with wrapping film.
